| Quantity: | |
|---|---|
XQ-SG1
XUANQING
7308900000
Specification
Common Specification of Steel Grating | |
Remarks: Special Material, Special High Zinc Coating and New Style can be Customized. | |
Material Standard | ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc |

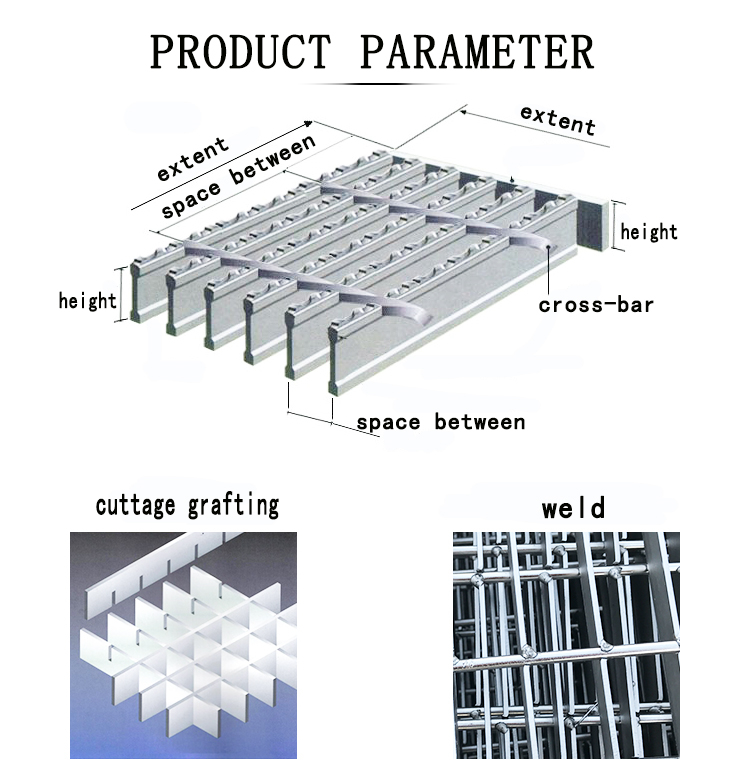

Bearing Bar (Width x Thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
Surface Treatment | Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement. |

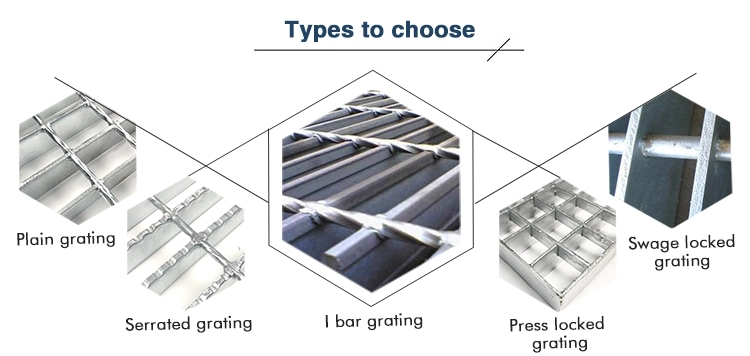

Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |
Packing | (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
Payment Term | T/T, L/C, Western Union, Credit Card |

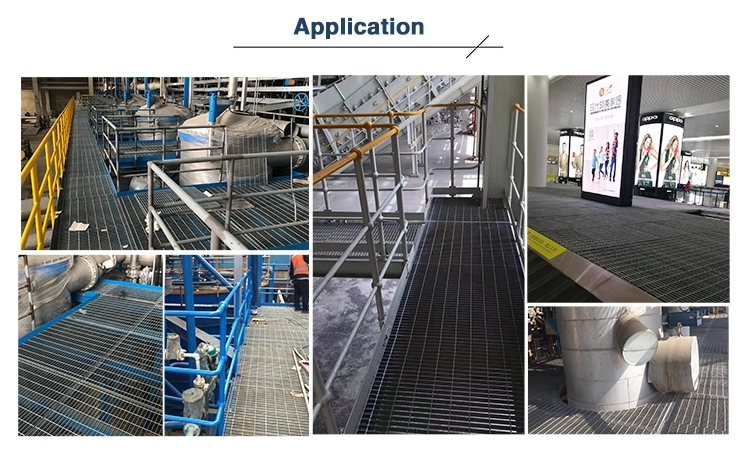

Application:
Steel plate/Steel grating has been widely used in all walks of life both at home and abroad, mainly used for industrial platform, staircase pedal, banister, channel floor, railway bridge service, high tower platform, the drain cover, manhole covers, road barrier, three-dimensional parking lot, organs, schools, factories, enterprises and institutions, the stadium fence, garden villa, also can be used as a residence outside the window, balcony guardrail, highway, rail barrier, etc.

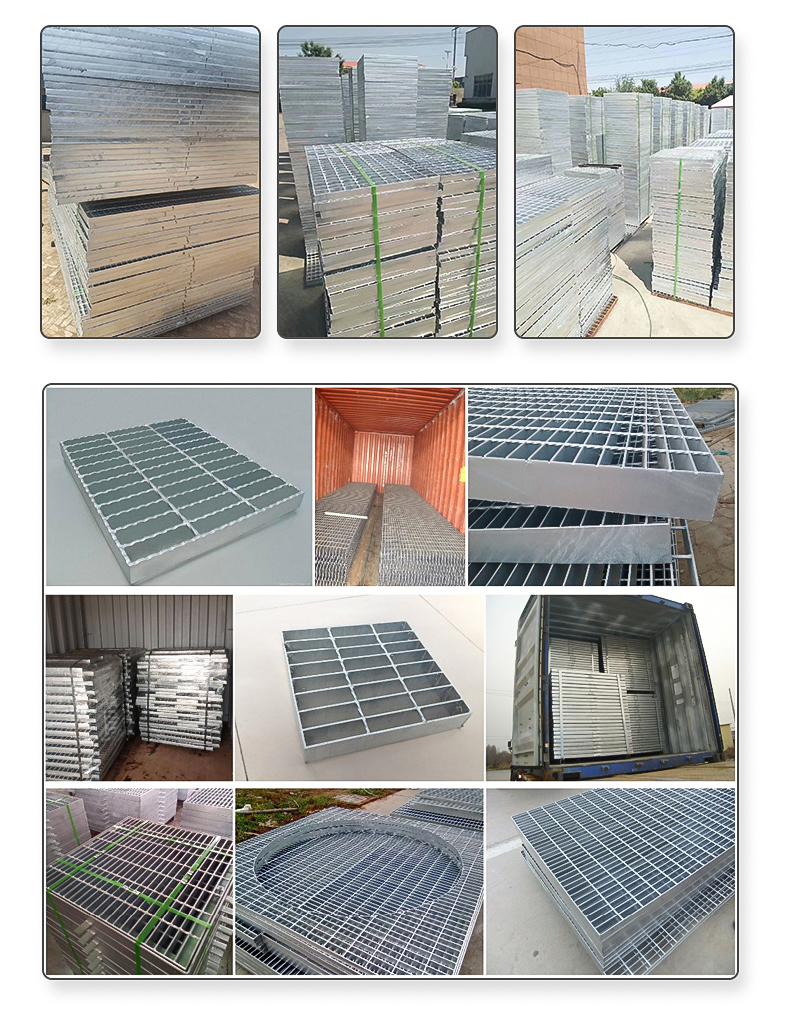

Grating Standard Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.
4. According to customer's packing requirements.
Specification
Common Specification of Steel Grating | |
Remarks: Special Material, Special High Zinc Coating and New Style can be Customized. | |
Material Standard | ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc |
Bearing Bar (Width x Thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
Surface Treatment | Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement. |
Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |
Packing | (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
Payment Term | T/T, L/C, Western Union, Credit Card |
Application:
Steel plate/Steel grating has been widely used in all walks of life both at home and abroad, mainly used for industrial platform, staircase pedal, banister, channel floor, railway bridge service, high tower platform, the drain cover, manhole covers, road barrier, three-dimensional parking lot, organs, schools, factories, enterprises and institutions, the stadium fence, garden villa, also can be used as a residence outside the window, balcony guardrail, highway, rail barrier, etc.
Grating Standard Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.
4. According to customer's packing requirements.
