China hot dipped galvanized chain link fence for export

China hot dipped galvanized chain link fence for export
Quantity:
  • XQ023
  • XUANQING
  • 73144900
  • Low-Carbon Iron Wire
  • Fence Mesh, Protecting Mesh, Decorative Mesh, Cons
  • Diamond
  • Plain Weave
  • HOT dipped Galvanized
  • 1''(25mm),1.5''(40mm),2''(50mm),2.25''(56mm),3"(76
  • 0.8mm-5.0mm
  • 0.5m-6.0m
  • 8m, 10m, 12m, 15m, 18m, 20m
  • 100SQM
China hot dipped galvanized chain link fence for export

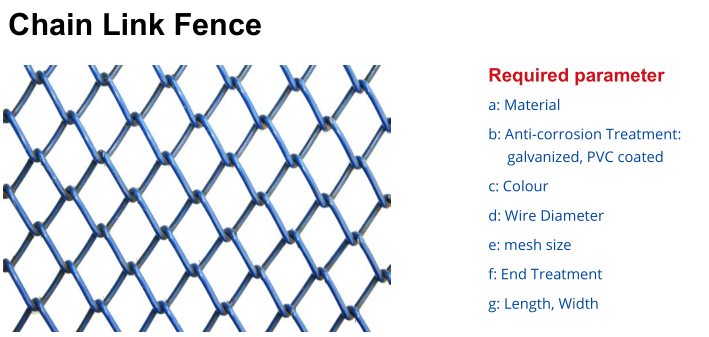

Chain link fence Product description
Opening  1" 1.5" 2" 2-1/4" 2-3/8" 2-1/2" 2-5/8" 3" 4"
(mm) 25 40 50 57 60 64 67 75 100
Diameter 18#-13# 16#-18# 18#-7#
1.2-2.4mm 1.6-4.2mm 2.0-5.0mm
Length/roll 0.50m-100 m (Much longer)
Width 0.5m-5.0m
Materials and specifications can be made as request.
Chain link fence post description
Post style Post size Post height

Square Post
40*40*1.2mm 1.5m
40*40*1.5mm 2.0m
60*60*2.0mm 2.1m
60*60*2.5mm 2.2m
Peach Post 50*70mm 2.3m

Round Post
38*1.2mm 2.4m
40*1.5mm 2.5m
42*1.5mm 2.7m
48*2.0mm 2.9m

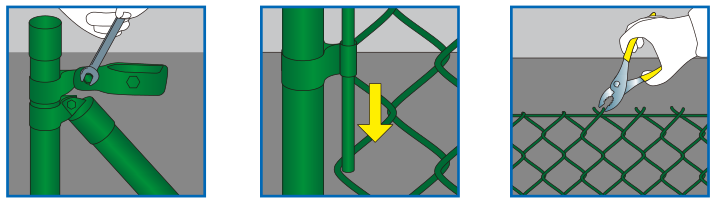

The details of chain link fence

Flat iron : support
Brace band : link tensioner & post
Tension band : Link the flat iron & post
Tensioner : secure the line wire chain link fence
Line wire : Folding the chain link mesh
Tie wire & Stirrup wire : secure the line wire & post and secure the post and the mesh

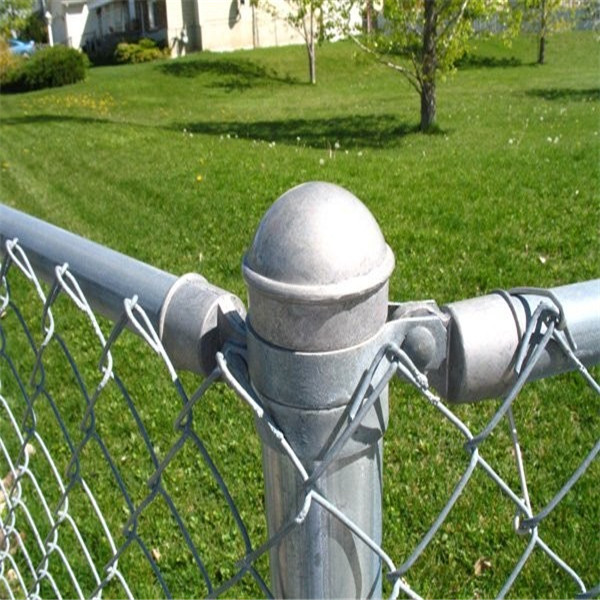

link 21

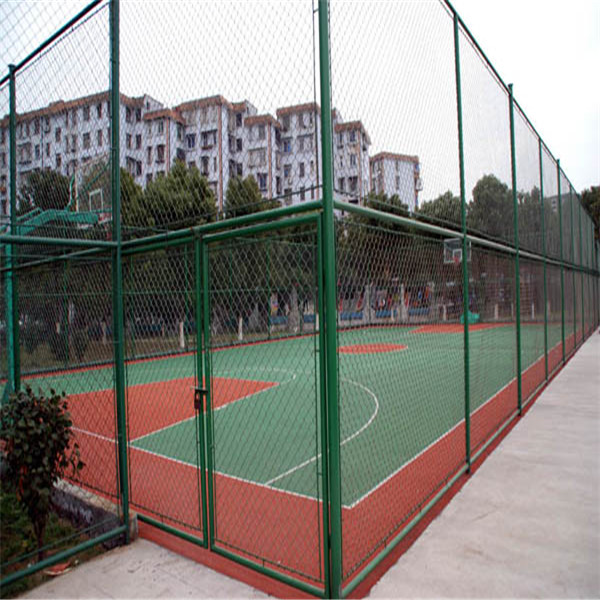

操场用勾花护栏网(GH_HL)
201206251045077674
Our Services
1. 15-18 hours on-line service
2.  Excellent service for pre-sale,on-sale and after-sale
3.  Expert at our products
4.  Competitive price with superior higher quality products
5.  We have our own factory and machines
6.  Free design and drawings for you.

FAQ
 1.Q: Where is your factory? Can I come to have a visit?
      A:  Yes, Of course you are welcomed to visit our factory. Our factory in Anping, Hengshui City. The nearest airport is Shijiazhuang Airport and Beijing Airport. And it is 2 hours away from Shijiazhuang, 5 hours away from Beijing. The nearest Train Station Shijiazhuang, Dezhou, Hengshui, Cangzhou. It would take 1.5-2 hours from here. Inform us your schedule, we can pick you up then.
2. Q: Can I get free samples?
     A: Sample is available. Commonly we'd like to provide small pieces free samples for long business relationship, and customers pay for the express fee.
3. Q:Can you provide OEM service?
      A:Yes, all the products can be made as your require. Also we have some hot sale products can recommended to you.
