| Quantity: | |
|---|---|
XQ-SR1
XUANQING
73144900
The mesh also called stainless steel cable mesh, stainless steel cable netting, stainless steel rope mesh, wire rope mesh, wire cable netting, zoo mesh, wire rope woven mesh

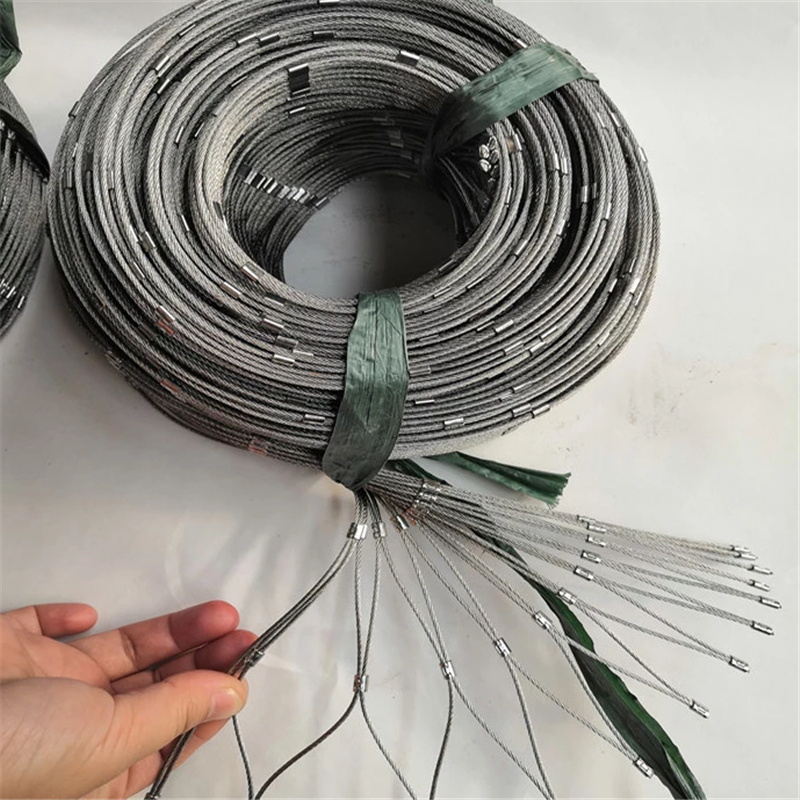

Name: Hand woven stainless steel cable mesh, also called stainless steel cable mesh, stainless steel cable netting, stainless steel rope mesh, wire rope mesh, wire cable netting, zoo mesh
Mesh material: Stainless steel 304 & 316, most 316
Wire rope diameter:3.18mm(1/8″),3.0mm, 3/32″(2.4mm), 1/16″(1.6mm), 1.5mm, 3/64″(1.2mm) and 1.0mm
Wire rope construction:1/8″ &3.0mm - 7×19; all others - 7×7

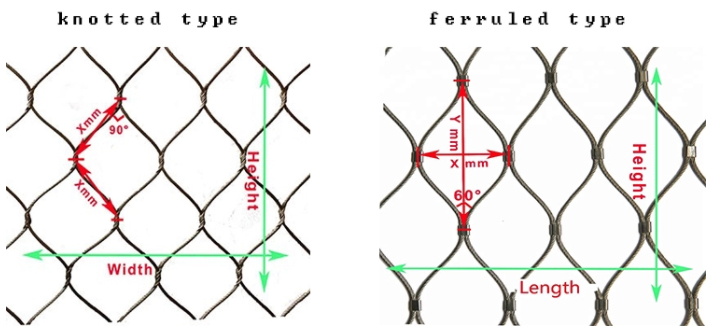

Mesh hole size:
12.7mm x 12.7mm(1/2″ x 1/2″) ,4/5″ x 4/5″(20mm x 20mm), 1″ x 1″(25mm x 25mm), 30mm x 30mm,1-1/2″ x 1-1/2″(38mm x 38mm), 40mm x 40mm, 2″ x 2″(51mm x 51mm), 60mm x 60mm, 3″ x 3″(76mm x 76mm), 80mm x 80mm, 90mm x 90mm, 4″ x 4″ (102mm x 102mm) and 120mm x 120mm
Mesh color: stainless steel self-color or
Technology: pure hand-made, inter-woven

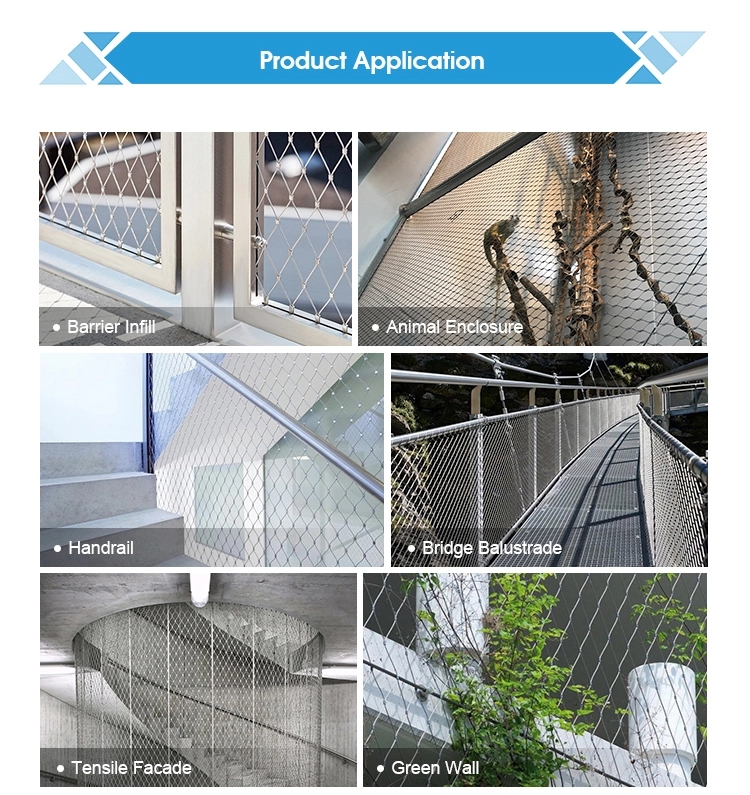

Application: zoo mesh, animal enclosure mesh, animal containment mesh, fence netting, bird netting, sports netting, graden netting etc.
Cable Diameter | Mesh Opening Size | Norninal Break | ||
inch | mm | inch | mm | lbs. |
1/8 | 3.2 | 4.75x4.75 | 120x120 | 1600 |
1/8 | 3.2 | 4x4 | 102x102 | 1600 |
1/8 | 3.2 | 3.55x3.55 | 90x90 | 1600 |
1/8 | 3.2 | 3x3 | 76x76 | 1600 |
1/8 | 3.2 | 2x2 | 51x51 | 1600 |
3/32 | 2.4 | 4x4 | 102x102 | 920 |
3/32 | 2.4 | 3.55x3.55 | 90x90 | 920 |
3/32 | 2.4 | 3x3 | 76x76 | 920 |
3/32 | 2.4 | 2.4x2.4 | 60x60 | 920 |
3/32 | 2.4 | 2x2 | 51x51 | 920 |
5/64 | 2.0 | 3x3 | 76x76 | 676 |
5/64 | 2.0 | 2.4x2.4 | 60x60 | 676 |
5/64 | 2.0 | 2x2 | 51x51 | 676 |
5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
1/16 | 1.6 | 3x3 | 76x76 | 480 |
1/16 | 1.6 | 2x2 | 51x51 | 480 |
1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
1/16 | 1.6 | 1.2x1.2 | 30x30 | 480 |
1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
3/64 | 1.2 | 1.2x1.2 | 30x30 | 270 |
3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |
